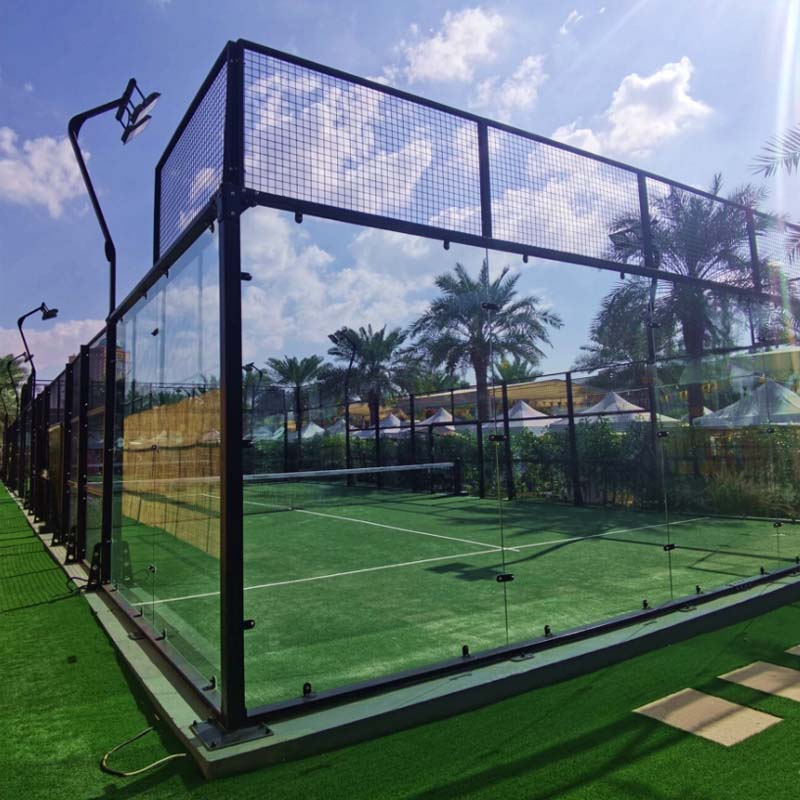

Professional-Grade WPT Padel Court System with Full Technical Specifications

Engineered to meet International Padel Federation (FIP) and World Padel Tour (WPT) standards, this premium court system combines industrial-strength construction with certified performance components:

Key Differentiators vs Conventional Courts

1. Reinforced Metallic Structure

 Main Posts: 100×100x3×3000mm Q235 galvanized steel

 Mesh Frame: 1000×2000mm panels with 50×30×2mm tubes & 4mm 50×50mm wire mesh

Crossbeams: 50×100x3×4000mm (20m side) / 50×100x3×5000mmmm (10m side)

Corner Joints: Dual 50×100×2000mm reinforced crossbars

Fastening: 304 stainless steel rivet nuts + self-drilling screws

Certification: GB 15763.2-2005 impact compliance

2.Key Differentiators vs Conventional Courts

 Material: Premium Tempered glass (0 defects)

 Thickness: 12mm (3-5× stronger than standard glass)

 Thermal Resistance: Withstands 300°C thermal shock

 Edgework: Precision drilling & polished edges

 Certifications:

EN 12150-1 (EU)

AS/NZS2208:1996 (ANZ)

CAN/CGSB 12.1-2017 (CA)

ANSI Z97.1-2015 (US)

3.Competition-Ready Artificial Turf

•  Pile Height: 12mm curled monofilament

•  Density: 63,000 tufts/㎡

•  Yarn: 9,000 Dtex UV-stabilized

•  Backing: PP Net + PU composite

•  Critical Certifications:

• CE/ROHS/REACH 205

• GB/T 21604-2008 (Skin irritation)

• GB 21510-2008 (Antimicrobial)

• GBT20394-2019 Burn Resistance

• Lisport 150,000-cycle wear test

• SGS UV5000h aging certification

4. Professional Lighting System

 Configuration: 8×200W IP65 LED fixtures

 Light Columns: 60×60×3000mm galvanized steel

 Illumination: 300 Lux WPT-compliant

 Installation: Embedded fence integration

5. Tournament Net System

 Dimensions: 10×0.92m with 4×4cm mesh

 Construction:

Black knotted PE cable

4mm galvanized tension wire

PVC-reinforced white borders

Engineering Support

 Full structural calculations available

 Customizable for architects/clubs

 Daily production capacity: 10,000㎡ glass

Manufacturing Excellence

• As China's pioneering certified padel court manufacturer, CAILIDE TECHNOLOGY delivers:

• Full compliance with Premier Padel Tour technical protocols

• Military-grade galvanization processes (76μm coating thickness)

• Modular installation system (40% faster deployment)

• Cost-optimized production with EN 14904 certification

Value Proposition

• Our turnkey solutions combine:

• Tournament-grade performance durability

• Immersive spectator engagement design

• 20% lower lifecycle costs vs European counterparts

• Customizable branding integration options

OUR PADEL COURT INCLUDES
Corner Column						Material:hot dip galvanized Size：100mm*100mm*3mm Length：3m				4pcs
Lamp Column						Material:hot   dip galvanized   Size:100 mm*50mm*3mm   Length：3m				4 pcs
Column						Material:hot   dip galvanized     Color: Black     Size:100mm*50mm*3mm     Length：3m				8 pcs
Cross Tube						Material:hot dip galvanized Color:Black Upper bar： Size：100 mm*50mm*3mm， Length：4m/5m. lower bar： Size：100 mm*50mm*3mm， Length：4m/5m.				16 pcs
Net Column						Height：980mm     Column size：100mm*50mm*3mm				2 pcs
Steel Mesh						Material:hot   dip galvanized     Size：1m*2m/1m*4m     Mesh diameter:4mm     Hole Size：50*50mm     Seine frame: 50mm*30mm*2mm				44 pcs
Light and Light Column						Light   column height：3m     Light column size：     60mm*60mm*3mm（Type C）     Light：200W LED   IP65				8 pcs
Tempered Glass						Material:tempered   glass     Thickness：12mm     Size：2000mm*3000mm				18 pcs
Artificial Grass						Color：Blue     Material: PE (Polyene) crimp yarn     Pile height: 12mm     Stitche rate: 250s/m     Gauge：3/16"     Density：52500s/㎡     Dtex：9000D     Backing：Butadiene benzene				210 sqm
Net						Lenght:   9970mm     Height: 920mm     Material: PP     Thickness: 4mm     Mesh: 45mm     Color: Black				1 pcs
Tape Cloth						Material：white   non woven cloth     size：0.3m*100m/roll				1 rolls
