Premier Padel Official Court Technical Specifications
FIP-Compliant Competition Standard Facility

Structural Overview

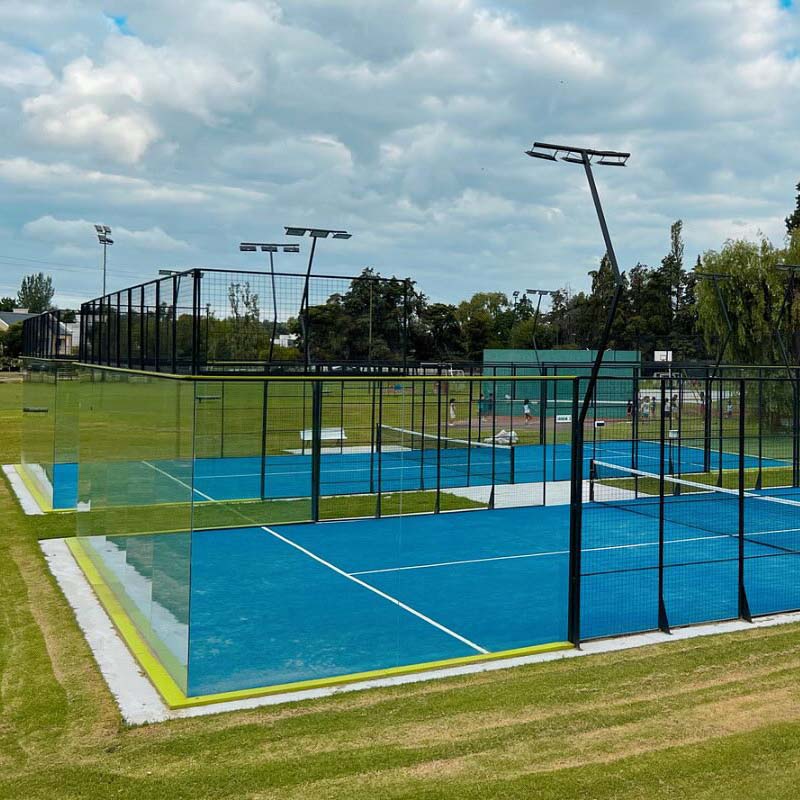

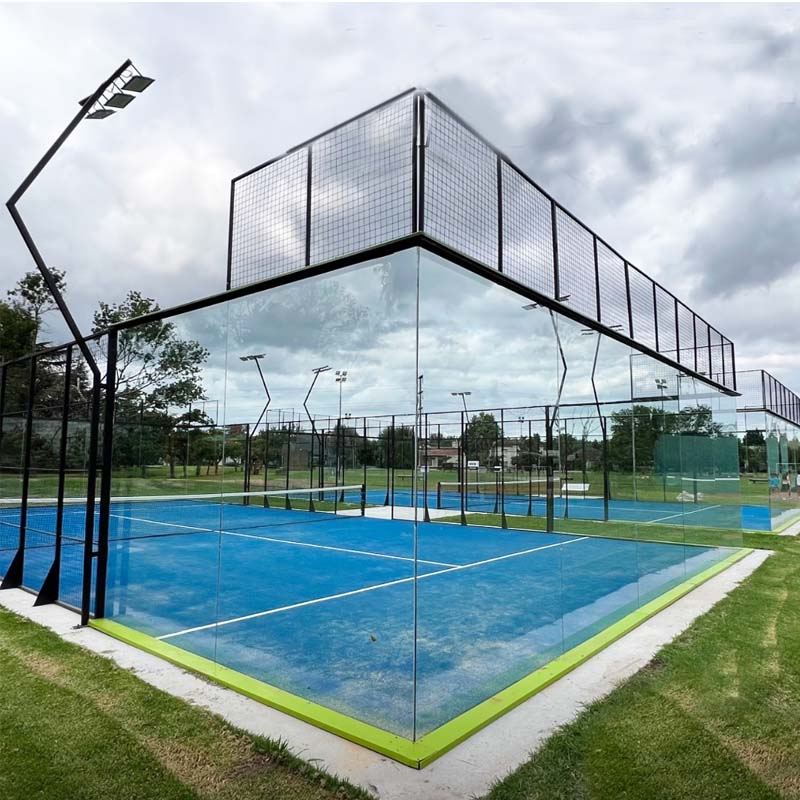

As the exclusive court system for the Premier Padel Global Tour, this innovative facility integrates full-height panoramic glazing with advanced seismic engineering. Our patented structural design significantly enhances both spectator experience and player safety standards for professional padel tournaments.

Key Differentiators vs Conventional Courts

1.Panoramic Visual System

• 360° frameless viewing through 12mm laminated safety glass (EN 12600 Class 1 impact rated)

• Seamless corner transitions with precision-ground edges

• Column-free architecture eliminates visual obstructions

2.Advanced Metal Framework

• Primary structure: Reinforced Q235B steel columns (100×100×3mm HDG)

• Proprietary racquet-shaped base connectors (20% increased load distribution efficiency)

• V-profile aluminum alloy beams (5mm 6063-T5 alloy, yield strength ≥160MPa)

3.Competition-Grade Surface System

• MONDO-engineered hybrid turf system:
  UV-stabilized PE monofilament (12mm pile height, 10,000 dtex)
  High-density tufting: 58,500 stitches/㎡(3/16" gauge)
  Dual-layer backing: PET reinforcement + UV-resistant PP substrate
  PU-coated base (800g/㎡) with 30L/min/㎡ drainage capacity




Manufacturing Excellence

• As China's pioneering certified padel court manufacturer, CAILIDE TECHNOLOGY delivers:

• Full compliance with Premier Padel Tour technical protocols

• Military-grade galvanization processes (76μm coating thickness)

• Modular installation system (40% faster deployment)

• Cost-optimized production with EN 14904 certification

Value Proposition

• Our turnkey solutions combine:

• Tournament-grade performance durability

• Immersive spectator engagement design

• 20% lower lifecycle costs vs European counterparts

• Customizable branding integration options

OUR PADEL COURT INCLUDES
Lamp Column						Material:hot   dip galvanized   Size:100 mm*100mm*3mm   Length：3m+1m（L-tape）				4 pcs
Column						Material:hot   dip galvanized     Color: Black     Size:100mm*50mm*3mm     Length：3m				8 pcs
Cross Tube						Material:hot   dip galvanized  Upper bar：  Size：100mm*100mm*3mm，  Length：3m+2m（L-tape）/6m  lower bar：  Size：100 mm*50mm*3mm，  Length：4m+2m（L-tape）/6m.				16 pcs
Net Column						Height：980mm     Column size：100mm*50mm*3mm				2 pcs

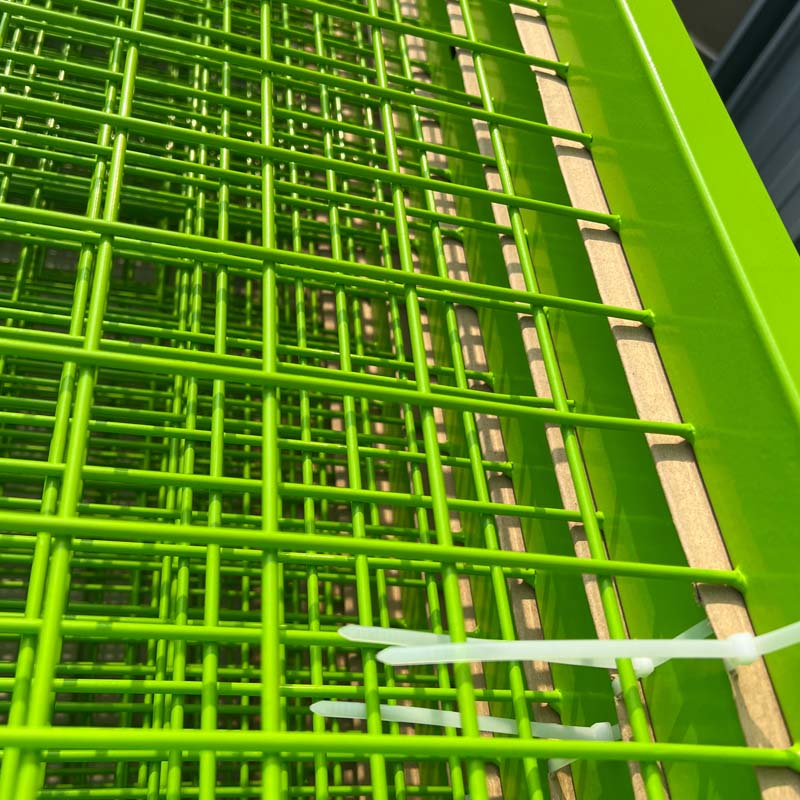

Steel Mesh						Material:hot   dip galvanized     Size：1m*2m/1m*4m     Mesh diameter:4mm     Hole Size：50*50mm     Seine frame: 50mm*30mm*2mm				44 pcs
Light and Light Column						Light   column height：3m     Light column size：     60mm*60mm*3mm（Type C）     Light：200W LED   IP65				8 pcs
Tempered Glass						Material:tempered   glass     Thickness：12mm     Size：1996mm*3000mm				18 pcs
Artificial Grass						Color：Blue     Material: PE (Polyene) crimp yarn     Pile height: 12mm     Stitche rate: 250s/m     Gauge：3/16"     Density：58500s/㎡     Dtex：9000D     Backing：Butadiene benzene				210 sqm
Net						Lenght:   9970mm     Height: 920mm     Material: PP     Thickness: 4mm     Mesh: 45mm     Color: Black				1 pcs
Tape Cloth						Material：white   non woven cloth     size：0.3m*100m/roll				1 rolls
