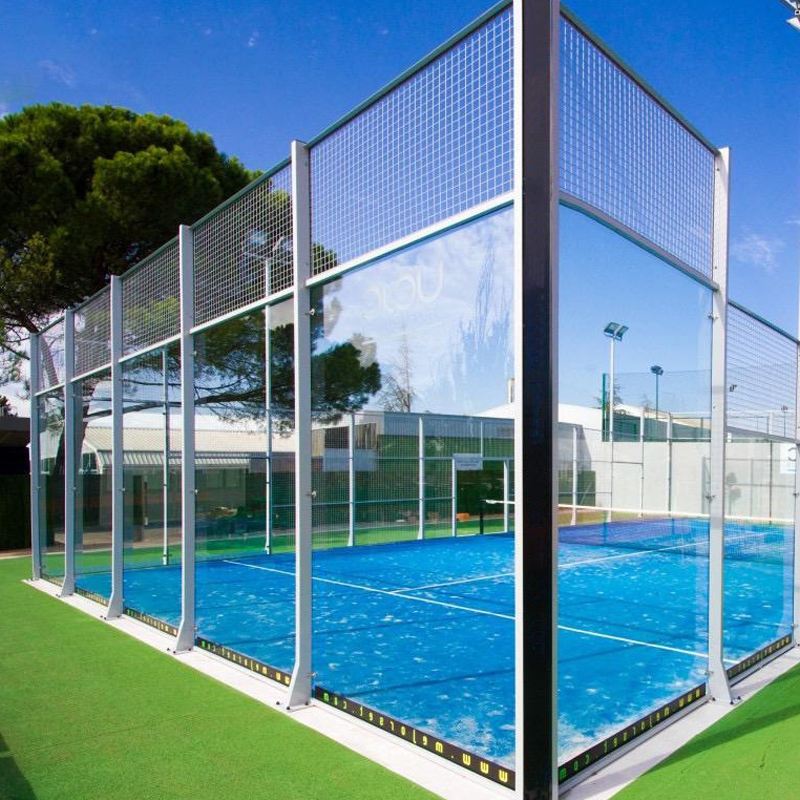

Professional-Grade WPT Padel Court System with Full Technical Specifications

This personalized classic paddle tennis court is produced according to professional design drawings, which complies with the regulations of the International Padel Federation and WPT

Key Differentiators vs Conventional Courts

1. Reinforced Metallic Structure

 Main Posts: 80×60x3x2 mm Q235 galvanized steel

 Mesh Frame: 1000×2000mm panels with 50×50×2mm tubes & 4mm 50×50 wire mesh

Crossbeams: 80 mm*40mm*3mm

Fastening: 304 stainless steel rivet nuts + self-drilling screws

Certification: GB 15763.2-2005 impact compliance

2.Key Differentiators vs Conventional Courts

 Material: Premium float glass (0 defects)

 Thickness: 12mm (3-5× stronger than standard glass)

 Thermal Resistance: Withstands 300°C thermal shock

 Edgework: Precision drilling & polished edges

 Certifications:

EN 12150-1 (EU)

AS/NZS2208:1996 (ANZ)

CAN/CGSB 12.1-2017 (CA)

ANSI Z97.1-2015 (US)

3.Competition-Ready Artificial Turf

•  Pile Height: 12mm curled monofilament

•  Density: 52,500 tufts/㎡

•  Yarn: 9,000 Dtex UV-stabilized

•  Material: PE

   Critical Certifications:

• CE/ROHS/REACH 205

• GB/T 21604-2008 (Skin irritation)

• GB 21510-2008 (Antimicrobial)

• GBT20394-2019 Burn Resistance

• Lisport 150,000-cycle wear test

• SGS UV5000h aging certification

4. Professional Lighting System

 Configuration: 8×200W IP65 LED fixtures

 Light Columns: 40×80x3×3000mm galvanized steel

 Illumination: 300 Lux WPT-compliant

 Installation: Embedded fence integration

5. Tournament Net System

 Dimensions: 10×0.92m with 45×45mm mesh

 Construction:

Black knotted PE cable

4mm galvanized tension wire

PVC-reinforced white borders

Engineering Support

 Full structural calculations available

 Customizable for architects/clubs

 Daily production capacity: 10,000㎡ glass

Manufacturing Excellence

• As China's pioneering certified padel court manufacturer, CAILIDE TECHNOLOGY delivers:

• Full compliance with Premier Padel Tour technical protocols

• Military-grade galvanization processes (76μm coating thickness)

• Modular installation system (40% faster deployment)

• Cost-optimized production with EN 14904 certification

Value Proposition

• Our turnkey solutions combine:

• Tournament-grade performance durability

• Immersive spectator engagement design

• 20% lower lifecycle costs vs European counterparts

• Customizable branding integration options

OUR PADEL COURT INCLUDES
Corner Column						Material:hot dip galvanized Size：80mm*60mm*3mm*2（Splicing） Length：4m				4pcs
Lamp Column						Material:hot   dip galvanized   Size:100 mm*50mm*3mm   Length：3m				4 pcs
Column						Material:hot   dip galvanized     Color: Black     Size:100mm*50mm*3mm     Length：3m				8 pcs
Cross Tube						Material:hot dip galvanized Size：80 mm*40mm*3mm， Length：4m/5m.				16 pcs
Net Column						Height：980mm     Column size：100mm*50mm*3mm				2 pcs
Steel Mesh						Material:hot   dip galvanized     Size：1m*2m/1m*4m     Mesh diameter:4mm     Hole Size：50*50mm     Seine frame: 50mm*30mm*2mm				44 pcs
Light and Light Column						Light column height：3m Light column size：      80mm*40mm*3mm（Type Z）/      50mm*50mm*2.5mm（Type C） Light：200W LED   IP65				8 pcs
Tempered Glass						Material:tempered   glass     Thickness：12mm     Size：1990 mm*3000mm				18 pcs
Artificial Grass						Color：Blue     Material: PE (Polyene) crimp yarn     Pile height: 12mm     Stitche rate: 250s/m     Gauge：3/16"     Density：52500s/㎡     Dtex：9000D     Backing：Butadiene benzene				210 sqm
Net						Lenght:   9970mm     Height: 920mm     Material: PP     Thickness: 4mm     Mesh: 45mm     Color: Black				1 pcs
Tape Cloth						Material：white   non woven cloth     size：0.3m*100m/roll				1 rolls
