Products Description

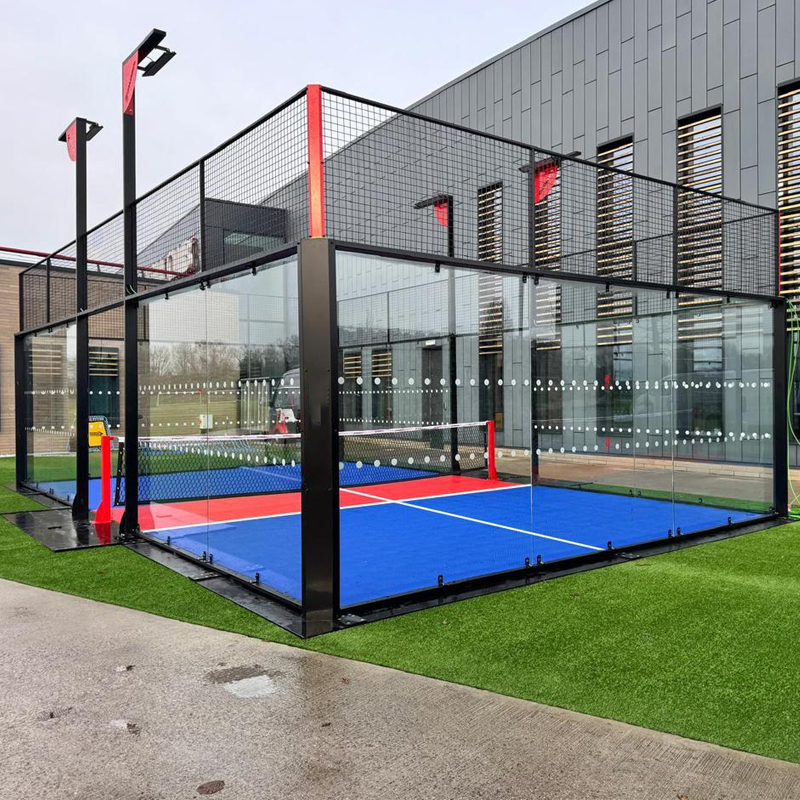

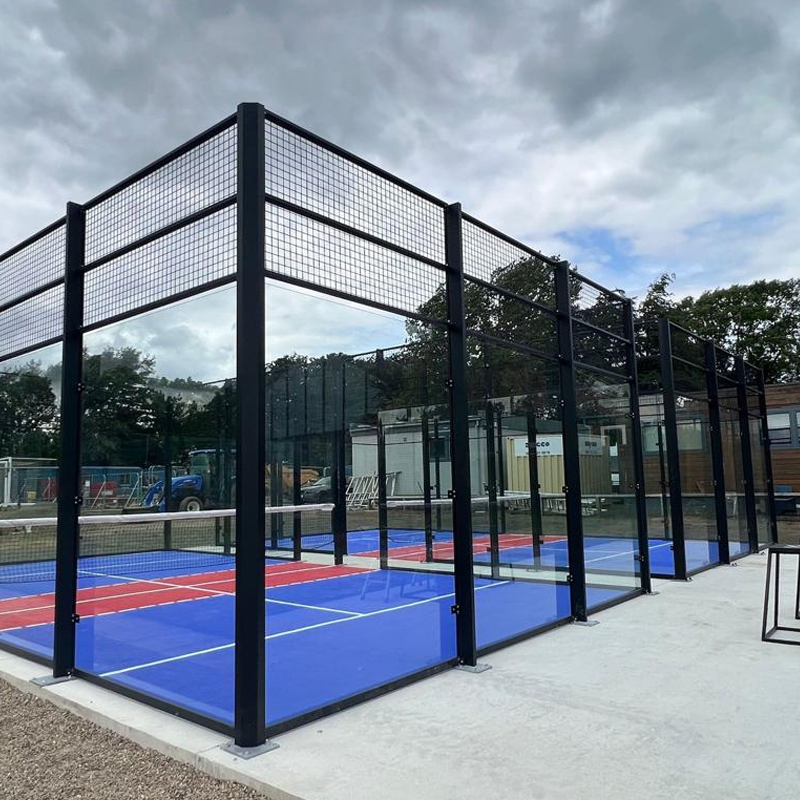

Padbol Court (Cage Football Field) Overview
Ideal for sports parks and rooftop installations in commercial spaces like shopping malls, this multifunctional sports facility combines elements from football, tennis, paddle tennis, squash, and volleyball, earning its nickname "Fusion Sport."
Structural Specifications:
Corner Columns
Material: Hot-dip galvanized Q235B high-quality steel
Dimensions: 80mm × 40mm × 3mm (2 sets)
Height: 3.5 meters
Mesh Fencing
Material: Hot-dip galvanized steel mesh
Panel Size: 1m × 2m
Mesh Diameter: 4mm
Frame Dimensions: 40mm × 20mm × 2mm
Sports Flooring System
Tile Dimensions: 25cm × 25cm × 1.27cm (960 pieces)
Material: Polypropylene (PP)
Unit Weight: 205g ± 5g (per tile)
Full Court Composition:
Hot-dip galvanized steel columns and mesh panels
14 tempered glass panels (12mm thickness)
960 suspended sports floor tiles (thermoplastic rubber, 25cm × 25cm × 2cm)
LED lighting system
304 stainless steel screws and accessories
Key Features:
Designed for durability and versatility, the court integrates hybrid gameplay rules and structural elements from multiple sports, offering a unique recreational and competitive experience.
