Professional All-Glass Squash Court Manufacturer (WSF-Compliant)
We are a China-based manufacturer specializing in designing and producing premium all-glass squash courts. Since 2018, our courts have strictly adhered to the World Squash Federation (WSF) competition standards for dimensions and gameplay rules.

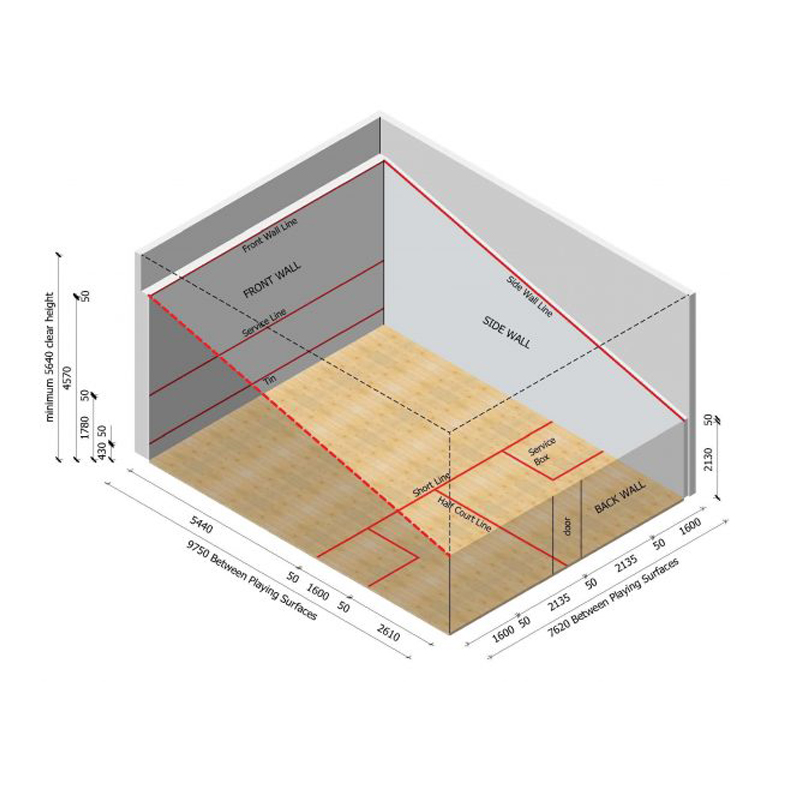

1. International Standard Singles Court Specifications

• Dimensions: 6.4m (width) × 9.75m (length)

• Height: Front wall 4.57m | Back wall 2.13m | Ceiling 5-6m

• Key Markings:

• Tin height: 0.48m

• Front service line: 1.83m from the floor

• Service line to back wall: 4.26m

• Half-court line divides serving areas (1.6m² each)

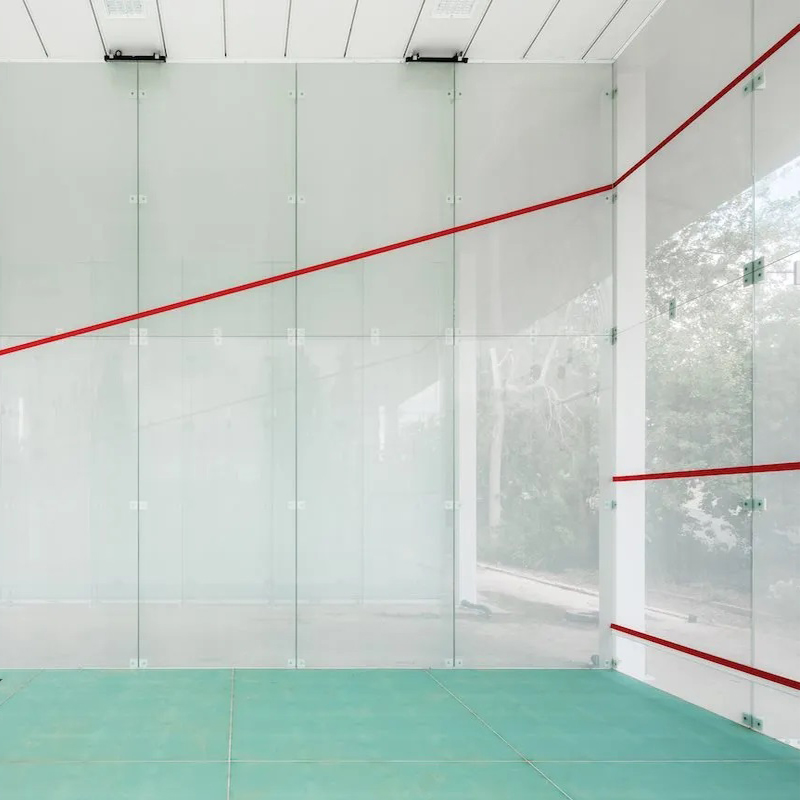

2. Glass Wall System

• Material: 12mm high-quality tempered glass panels

• Safety Certifications: 3C and CE certified

• Design Features:

• Edges and corners precision-polished

• Imported single-transparency film for visual clarity

• Large-format glass panels to ensure uniform ball rebound across all walls

• Rapid installation/disassembly via reinforced hardware connections

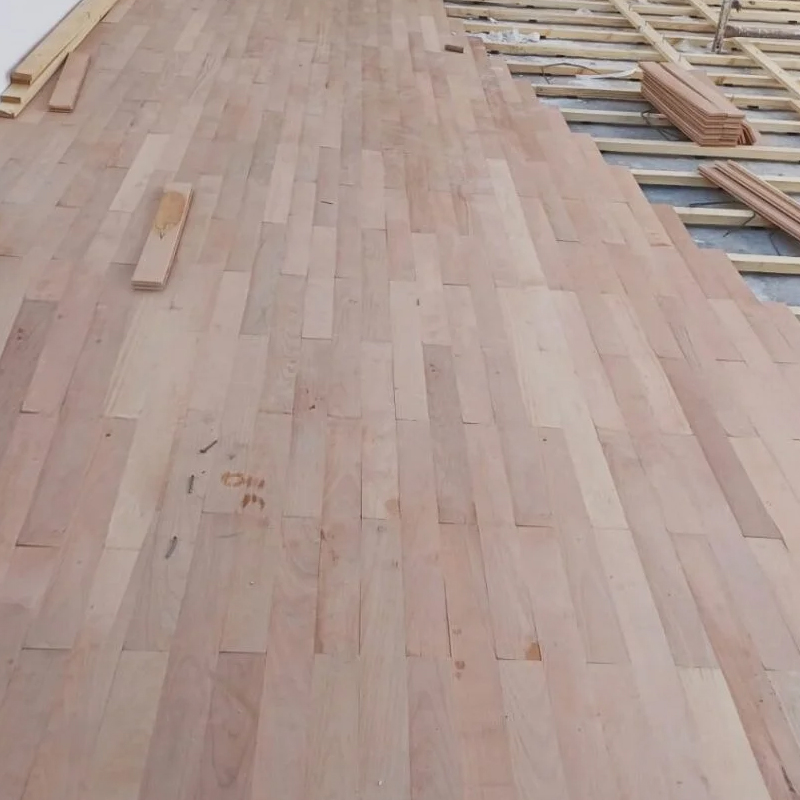

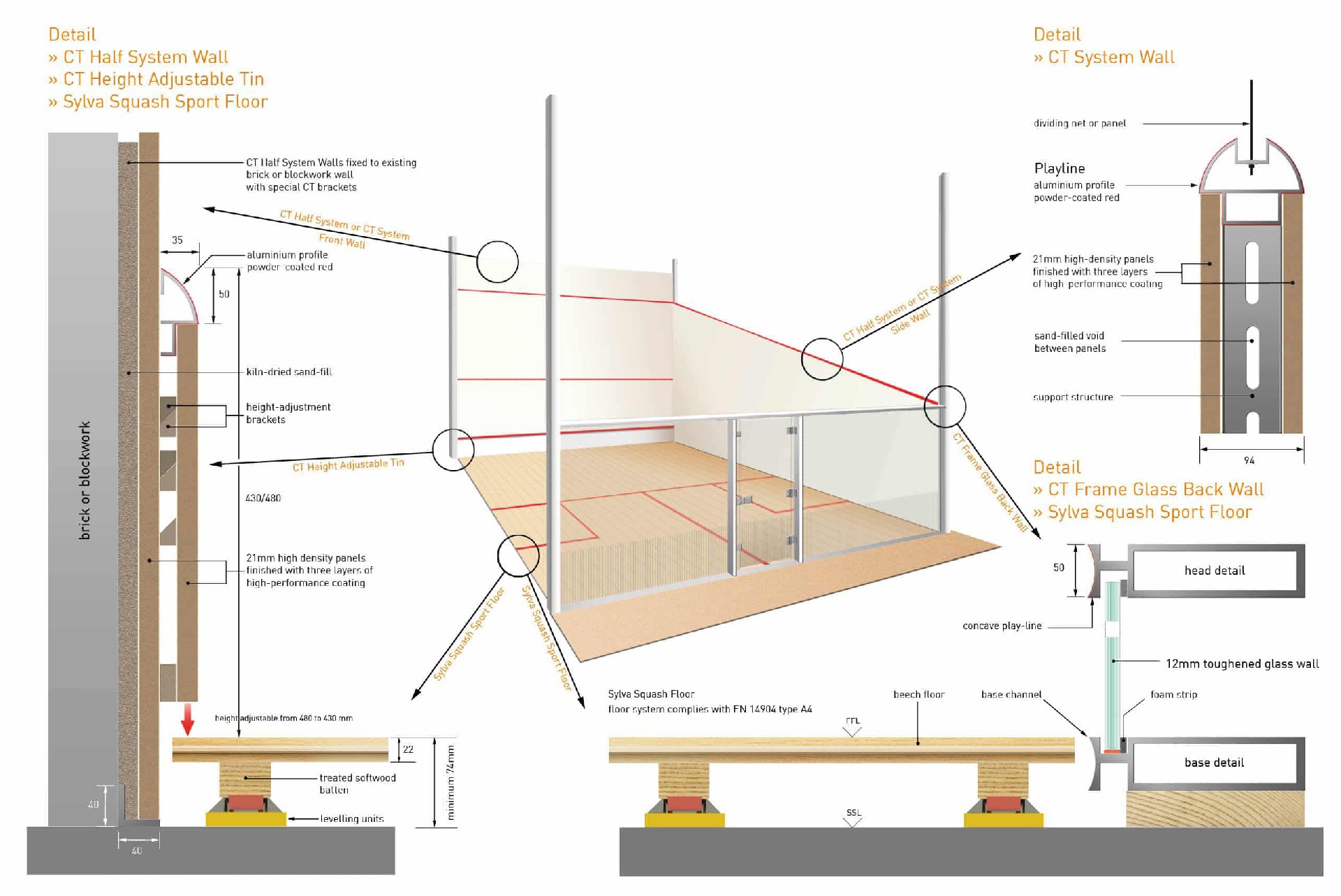

3. Sports Floor System

• Layer 1 (Surface): 22mm-thick imported Russian maple wood (1800×72×22mm planks) with anti-slip, environmentally friendly water-based paint.

• Layer 2: 15mm-thick shock-absorbing multi-layer board (2440×1220×15mm).

• Layer 3: 40×50mm LVL wooden keel.

• Layer 4: 20mm-thick rubber damping pads.

• Performance:

• WSF-compliant ball rebound and sound insulation

• Deformation-resistant structure with long-term durability

• Elastic cushioning reduces athlete injury risks

• Customizable colors and sweat-absorbing surface

4. High-Strength Hardware Accessories

• Material: 1cm-thick custom aluminum alloy links

• Properties: Surface hardness 16HW | Rust-proof | Lightweight

• Glass Wall Integration:

• 12mm tempered glass panels supported by protective joint pads

• Structurally optimized for stability and aesthetic precision
